HỆ THỐNG ĐÁNH LỬA SMITSVONK

HỆ THỐNG ĐÁNH LỬA SMITSVONK
(English) Allows ignition of main burners at places where a fixed pilot burner or igniter is not available and a spark is insufficient to ignite the main burner.

Đặc tính kỹ thuật:

Features:

  • High energy ignition unit
  • Insensitive to moisture and dirt
  • Self-aspirating SST igniter
  • Available for different gases and pressures

Applications:

  • Furnaces
  • Boilers
  • Ground flares

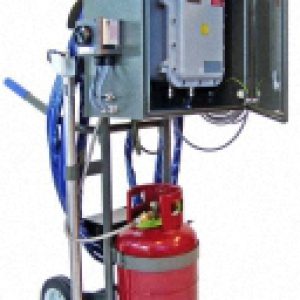

2-wheeled trolly

4-wheeled trolly
consisting of: consisting of:
self-aspirating igniter type 7
diameter: 38 mm
length: 1000 mm (other lengths possible)
capacity: 20 kW
gas: propane
igniter materials: 316 and 321 SST		 self-aspirating igniter type 51
diameter: 48 and 51 mm
length: 1000 mm (other lengths possible)
capacity: 180–350 kW
gas: propane
igniter materials: 310 and 316 SST
explosion proof (ATEX 2G IIC) high energy ignition unit explosion proof (ATEX 2G IIC) high energy ignition unit
explosion proof switch explosion proof switch
explosion proof solenoid valve explosion proof solenoid valve
pressure reducer with downstream pressure gauge pressure reducer with downstream pressure gauge
2 reels, including all cabling and gas hose 2 reels, including all cabling and gas hose
11 m gas hose and ignition cable 11 m gas hose and ignition cable
25 m power supply cable 25 m power supply cable
suitable for 24, 120 or 230 VAC suitable for 24, 120 or 230 VAC
IP 65 enclosure for instruments IP 65 enclosure for instruments
not included: gas bottles not included: gas bottles
options:
– igniter diameter 25 mm (not for natural gas)
– ionisation flame detection
– LPG, butane, natural gas or refinery gas		 options:
– wall mounted version with longer cable lengths
– ionisation flame detection
– LPG, butane, natural gas or refinery gas
